Supported Vehicles:

1) Supports ALL USA/EUROPEAN/JAPANESE/ Mitsubishi Vehicles.
ALL Mitsubishi Vehicles with an OBD-II connector, all Mitsubishis from 1994 onwards have one of these...
Includes support for Mitsubishi Diesel Vehicles.
HighSpeed Datalogging - 200 dataitems per second
2) Mitsubishi Evo 4/5/6/7/8/9, GTA/FQ
3) Mitsubishi Lancer,
4) Mitsubishi Legnum,
5) Mitsubishi Eclipse,
6) Mitsubishi FTO,
7) Mitsubishi Galant,
8) Mitsubishi VR4,
9) Mitsubishi Colt,
10) Mitsubishi Mirage/Mivec Mirage,
11) Mitsubishi L200/L400,
12) Mitsubishi 3000GT,
13) Mitsubishi Pajero/Shogun,
14) Mitsubishi Diamante,
15) Mitsubishi Outlander,
16) Mitsubishi Montero,
17) Mitsubishi Magna,
18) Mitsubishi Expo,
19) Mitsubishi Verada,
20) Mitsubishi Delica,
21) Mitsubishi Spacegear/SpaceWagon/SpaceStar/SpaceRunner,
22) Dodge Stratus,
23) Mitsubishi Eclipse GT/GS,
24) Mitsubishi Grandis
25) Mitsubishi Carisma

Supported SUBARU Vehicles:

1) Baja 2.5 Turbo (US)
10) Forester 2.5 Auto (US)
11) Impreza 2.0 (EURO)
12) Impreza 2.0 P1 (JDM)
13) Impreza 2.0 Prodrive WR1 (EURO)
14) Impreza 2.0 S203 (JDM)
15) Impreza 2.0 STI (AUS)
16) Impreza 2.0 STI S202 (JDM)
17) Impreza 2.0 STI Spec C (JDM)
18) Impreza 2.0 WRX Type RA (JDM)
19) Impreza 2.5 RS (US)
20) Legacy 2.0 B4 Twin-Turbo (JDM)
21) Legacy 3.0 (EURO)
22) Legacy 3.0 (JDM)
23) Legacy 3.0 B4 H6 (AUS)
24) Legacy 3.0 R Spec B (EURO)
25) MY99 Forester 2.0 Turbo S/GT (AUS)
26) MY99 Legacy 2.0 Auto (JDM)
27) MY99 Legacy 2.0 B4 RSK (JDM)
28) MY99 Legacy 2.0 B4 Twin-Turbo (JDM)
29) MY99 Legacy 2.0 Twin-Turbo (JDM)
30) MY99 Legacy 2.5 (EURO)
31) MY99/00 Impreza 2.0 STI (JDM)
32) MY99/00 Impreza 2.0 Turbo/WRX/GT (EURO)
33) MY99/00 Impreza 2.0 WRX (JDM)
25) MY00 Forester 2.0 Turbo S/GT (AUS)
26) MY00 Forester 2.0 Turbo S/GT (EURO)
27) MY00 Forester 2.0 Turbo S/GT Auto (EURO)
28) MY00 Legacy 2.5 RX (EURO)
29) MY00 Legacy 3.0 H6 (EURO)
30) MY01 Forester 2.0 STB (JDM)
31) MY01 Forester 2.0 Turbo S/GT Auto (AUS)
32) MY01 Impreza 2.0 WRX (AUS)
33) MY01 Impreza 2.0 WRX (JDM)
34) MY01 Impreza 2.0 WRX (US)
35) MY01 Impreza 2.5 (AUS)
36) MY01 Impreza 2.5 RS (US)
37) MY01 Legacy 2.0 Auto (EURO)
38) MY01 Legacy 2.5 RX (EURO)
39) MY01/02 Impreza 1.6 (EURO)
40) MY01/02 Impreza 2.0 GX (EURO)
41) MY01/02 Impreza 2.0 STI (JDM)
42) MY01/02 Impreza 2.0 STI Type RA (JDM)
43) MY01/02 Impreza 2.0 STI Type UK (EURO)
44) MY01/02 Impreza 2.0 WRX
45) MY01/02 Impreza 2.0 WRX (EURO)
46) MY01/02 Impreza 2.0 WRX (JDM)
47) MY01/02 Impreza 2.0 WRX (US)
48) MY02 Forester 2.0 (AUS)
49) MY02 Forester 2.0 GLS (EURO)
50) MY02 Forester 2.0 Turbo S/GT Auto (EURO)
51) MY02 Forester 2.5 (AUS)
52) MY02 Impreza 1.6 (EURO)
53) MY02 Impreza 2.0 STI (AUS)
54) MY02 Impreza 2.0 WRX (AUS)
55) MY02 Legacy 2.0 (EURO)
56) MY02 Legacy 2.0 B4 Twin-Turbo (AUS)
57) MY02 Legacy 2.0 B4 Twin-Turbo (JDM)
58) MY02 Legacy 2.0 GL (EURO)
59) MY02 Legacy 2.5 GX (EURO)
60) MY03 Forester 2.0 NA (EURO)
61) MY03 Forester 2.0 Turbo (JDM)
62) MY03 Forester 2.0 Turbo S/GT (EURO)
63) MY03 Forester 2.0 Turbo S/GT Turbo (EURO)
64) MY03 Forester 2.0 XT Turbo (EURO)
65) MY03 Forester 2.5 XT (US)
66) MY03 Forester 2.5 XT Turbo (US)
67) MY03 Impreza 1.6 (EURO)
68) MY03 Impreza 2.0 STI (AUS)
69) MY03 Impreza 2.0 STI (JDM)
70) MY03 Impreza 2.0 STI Spec C (JDM)
71) MY03 Impreza 2.0 STI Type UK (EURO)
72) MY03 Impreza 2.0 WRX (AUS)
73) MY03 Impreza 2.0 WRX (EURO)
74) MY03 Impreza 2.0 WRX (JDM)
75) MY03 Impreza 2.0 WRX (US)
76) MY03 Impreza 2.0 WRX Auto (US)
77) MY03 Impreza WRX 2.0 (JDM)
78) MY03 Legacy 2.0 (EURO)
79) MY03 Legacy 2.0 B4 Twin-Turbo (AUS)
80) MY03 Legacy 2.0 B4 Twin-Turbo (JDM)
81) MY03 Legacy 2.0 B4 Twin-Turbo S401 (JDM)
82) MY03 Legacy 2.0 GX (EURO)
83) MY03 Legacy 2.5 (EURO)
84) MY03 Legacy 3.0 (EURO)
85) MY03 Legacy 3.0 H6 (EURO)
86) MY03 Legacy 3.0 Outback (EURO)
87) MY04 Forester 2.5 XT (AUS)
88) MY04 Forester 2.5 XT (EURO)
89) MY04 Forester 2.5 XT (JDM)
90) MY04 Impreza 2.0 STI (AUS)
91) MY04 Impreza 2.0 WRX (AUS)
92) MY04 Impreza 2.0 WRX (US)
93) MY04 Impreza 2.0 WRX Auto (AUS)
94) MY04 Impreza 2.0 WRX Auto (US)
95) MY04 Impreza 2.5 STI (US)
96) MY04 Legacy 2.0 GT (AUS)
97) MY04 Legacy 2.0 GT (JDM)
98) MY04 Legacy 2.0 GT Auto (AUS)
99) MY04 Legacy 2.0 GT Auto (JDM)
100) MY04 Legacy 2.0 GTB (JDM)
101) MY04 Legacy 2.5 Auto (EURO)
102) MY04 Legacy 3.0 Auto (EURO)
103) MY04 Legacy 3.0 H6 VDC (AUS)
104) MY05 Baja 2.5 Turbo (US)
105) MY05 Forester 2.0 (EURO)
106) MY05 Forester 2.5 (US)
107) MY05 Forester 2.5 Auto (US)
108) MY05 Forester 2.5 XT (AUS)
109) MY05 Forester 2.5 XT (EURO)
110) MY05 Forester 2.5 XT (US)
111) MY05 Impreza 2.0 STI (JDM)
112) MY05 Impreza 2.0 STI Spec C (JDM)
113) MY05 Impreza 2.0 STI Type UK (EURO)
114) MY05 Impreza 2.0 WRX (AUS)
115) MY05 Impreza 2.0 WRX (EURO)
116) MY05 Impreza 2.0 WRX (JDM)
117) MY05 Impreza 2.0 WRX (US)
118) MY05 Impreza 2.0 WRX WRP10 (AUS)
119) MY05 Impreza 2.5 STI (US)
120) MY05 Legacy 2.0 GT (AUS)
121) MY05 Legacy 2.5 GT (US)
122) MY05 Legacy 2.5 Outback XT (US)
123) MY05 Legacy 3.0 Auto (US)
124) MY05 Legacy Outback 2.5 XT (US)
125) MY06 Forester 2.5 (AUS)
126) MY06 Forester 2.5 XT (EURO)
127) MY06 Forester 2.5 XT (JDM)
128) MY06 Forester 2.5 XT Auto (EURO)
129) MY06 Impreza 2.0 (EURO)
130) MY06 Impreza 2.0 (JDM)
131) MY06 Impreza 2.0 STI (JDM)
132) MY06 Impreza 2.5 (US)
133) MY06 Impreza 2.5 STI (AUS)
134) MY06 Impreza 2.5 STI (EURO)
135) MY06 Impreza 2.5 WRX (AUS)
136) MY06 Impreza 2.5 WRX (EURO)
137) MY06 Legacy 2.5 GT (US)
138) MY06 Legacy Outback 2.5 (US)
139) Tribeca 3.0 (US)

Current Data Logger Features: EvoScan v2.5
Look at ALL the information you can get from your vehicle, just from using the Evoscan Software, a USB Cable and a Laptop

Log data to csv (Excel) file. XML Data Settings File. DataLogging speed optimisations - up to 200 data items per second! Mitsubishi And OBDII Diagnostic Trouble Code support. DataLog Active/Stored Fault Codes - Retrieve EFI Fault Codes - Clear EFI Fault Codes Simultaneous synced WideBand serialport meter Logging Support Innovate LM-1 Wideband Oxygen Sensor logging support. Innovate LC-1 Wideband Oxygen Sensor logging support. AEM Uego Wideband Oxygen Sensor logging support. Zeitronix Zt-2 Wideband Oxygen Sensor loggingsupport. Logging SuperSpeed option (up to 200 total samples per second logging!) main EFI ecu data logging items (ABS/AYC/DTC ecu data items to follow)

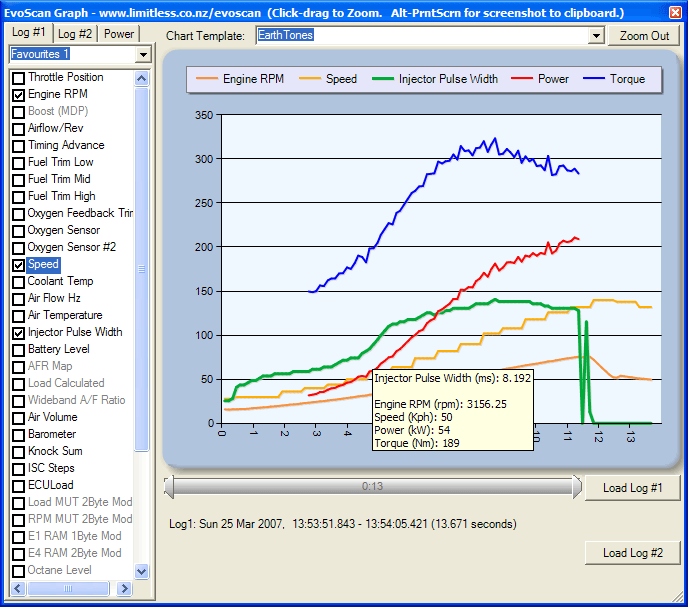

Realtime Graphing support Drag, Drop, and Position any number of gauges onto the screen. Compatable with CAR PCs Select from a huge range of cool looking gauges (or preconfigured dashboards)

Customizable Led Indicators, Digital Counters, Circular Gauges, Linear Gauges







Includes Custom Gauge builder Wizard. Assign data logging item to each gauge.
Activate Actuators such as AYC Bleeding and Fuel Injectors for testing and activating sensors:


Save/Load your custom Gauge.xml files to share with others. Save/Load your Screen Gauge layout.xml files to share with others. Playback on your gauges, graphs and GPS screen anyone elses csv data log file. You can set any hotkeys on your laptop for start/end datalogging Alerting on data value minimum/maximum/rate of change Alerts by Background colour, and/or by custom alarm sound (wav file). Awesome graphing support - full zoom support More HORSEPOWER please!!! OnRoad Dyno Graphing and Logging....

Diagnostic trouble codes support
SRS ECU support!
Innovate Aux input logging
Video WebCam and GPS Split and Lap Sector times. Playback/Record/Telemetry Syncronization with Video/GPS/Datalogger.


PC Requirements:
EvoScan/EcuFlash/OpenPort 1.3U Requires installation of USB FTDI drivers (installed with ecuflash, or EvoScan will auto install them if no drivers found on logging)
          Otherwise you'll get this message: FTD2XX.DLL missing
you can manually install the Evoscan USB drivers from

C:\program files\evoscan\EvoScan v2.5\USB Drivers\x86\DPinst.exe /i

Requires installation of Microsoft .NET Framework v2.0 (its not installed by default on WindowsXP, but it is installed by default in Windows Vista)
    Otherwise you'll get this message: "The application failed to initialize properly (0xc0000135)." - to fix install MS .NET Framework v2.0

Basically if the laptop can run Windows fine, then the EvoScan software will also run.

The EvoScan software runs really fast, even on 300Mhz machines.
To get maximum speed on EvoScan:
- Disable Log To Screen, and Enable Logging Superspeed, run a power inverter in your car for your laptop to get full speed cpu from your laptop (Less effect is noticed on 2.0Ghz laptops with a/c power, but slower laptops or laptops running off the battery benefit a lot of speed with these settings)
